Industrial Robots
Based on modular technology, FEND has developed highly efficient industrial platform robots. By combining functions and optimizing their advantages for the market, FEND robots—faster, more reliable, and more compact—are used in processes such as polishing, loading and unloading, deburring, inspection, adhesive application, sorting, assembly, and handling, driving innovation across multiple industries.
Product Advantages
Faster | Efficient Production
Optimal hardware performance powered by in-house developed control systems
Exceptionally agile motion supported by a modular control architecture
More Precise | Flexible Integration
Easier deployment thanks to a compact structure and hollow wrist
Broader application enabled by multiple interface options
More Reliable | Stable Operation
Rigorous design and continuous improvement provide a reliable partner for industrial production
IP67, CE, CR, KCs, and MTBF certifications
Easier to Use | Worry-Free Operation
Easier deployment thanks to the compact structure
and hollow wrist
Broader application enabled by multiple interface options
Industrial Robot Series

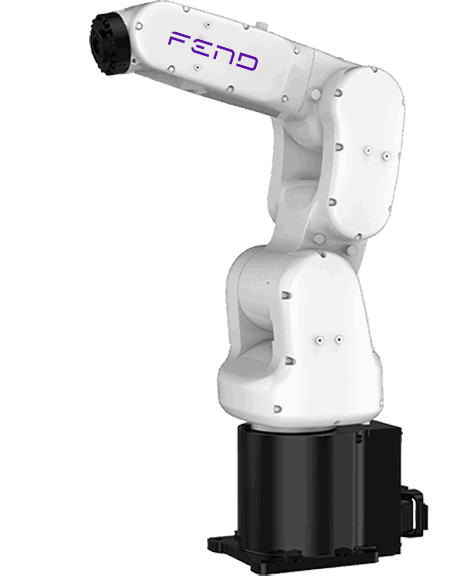

FR4/0470
Payload
4 kg
Weight
Alrededor de 22 kg
Reach
475 mm
DOF
6
IP Rating
IP67
Drive Mode
AC servo
Repeatability
±0.02 mm
Operating Temperature
0℃ to +40℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤70 dB(A)
Air
4-Φ4，5bar
Signal
8 canales (30 V, 0,5 A)
Mounting Method
Piso, Techo
Motion Parameters
Axis s
Range of Motion
Max Speed
Axis 1
-170° to +170°
450°/s
Axis 2
-90° to +130°
360°/s
Axis 3
-200° to +55°
360°/s
Axis 4
-170° to +170°
550°/s
Axis 5
-120° to +120°
450°/s
Axis 6
-360° to +360°
860°/s

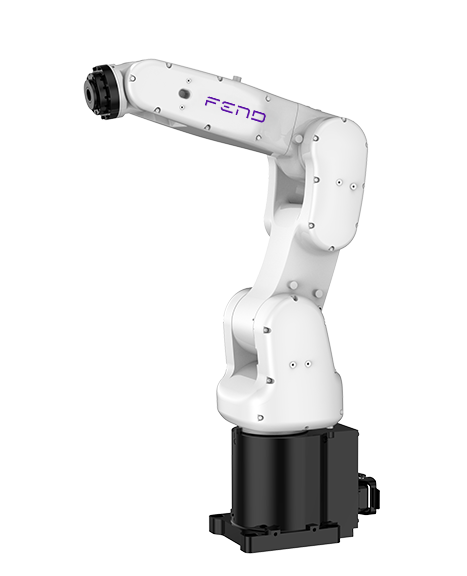

FR4/0580
Payload
4 kg
Weight
Approximately 22 kg
Reach
580 mm
DOF
6
IP Rating
IP67
Drive Mode
AC servo
Repeatability
±0.02 mm
Operating Temperature
0℃ to +40℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤70 dB(A)
Air
4-Φ4，5bar
Signal
8 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-170° to +170°
450°/s
Axis 2
-90° to +130°
318°/s
Axis 3
-200° to +55°
288°/s
Axis 4
-170° to +170°
550°/s
Axis 5
-120° to +120°
450°/s
Axis 6
-360° to +360°
612°/s

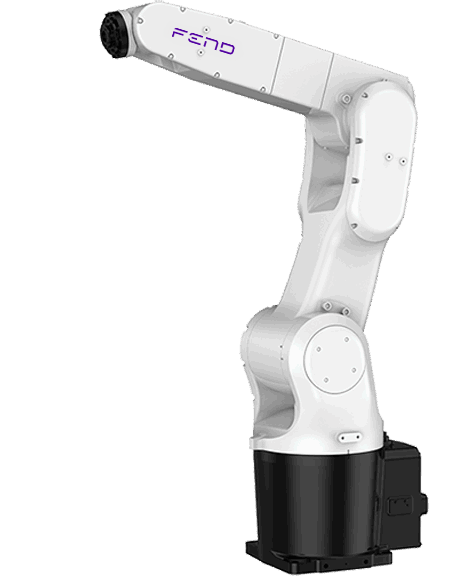

FR7/0700
Payload
7 kg
Weight
Approximately 50 kg
Reach
707 mm
DOF
6
IP Rating
IP67
Drive Mode
AC servo
Repeatability
±0.02 mm
Operating Temperature
0℃ to +40℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤70 dB(A)
Air
4-Φ4，5bar
Signal
8 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-170° to +170°
440°/s
Axis 2
-96° to +135°
355°/s
Axis 3
-195° to +65°
440°/s
Axis 4
-170° to +170°
480°/s
Axis 5
-120° to +120°
450°/s
Axis 6
-360° to +360°
705°/s
FR7/0900
Payload
7 kg
Weight
Approximately 52 kg
Reach
906 mm
DOF
6
IP Rating
IP67
Drive Mode
AC servo
Repeatability
±0.03 mm
Operating Temperature
0℃ to +40℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤70 dB(A)
Air
4-Φ4，5bar
Signal
8 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-170° to +170°
355°/s
Axis 2
-96° to +130°
355°/s
Axis 3
-195° to +65°
355°/s
Axis 4
-170° to +170°
480°/s
Axis 5
-120° to +120°
450°/s
Axis 6
-360° to +360°
705°/s

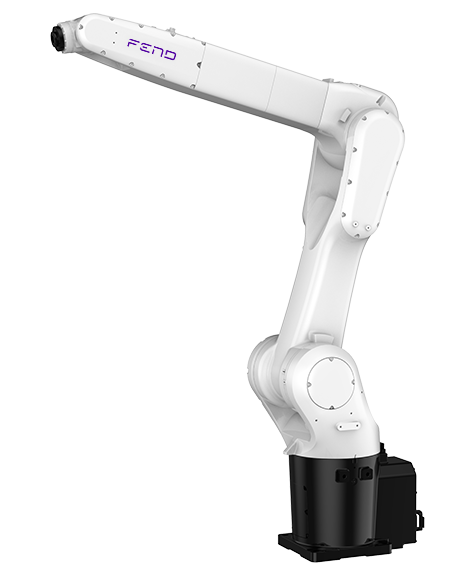

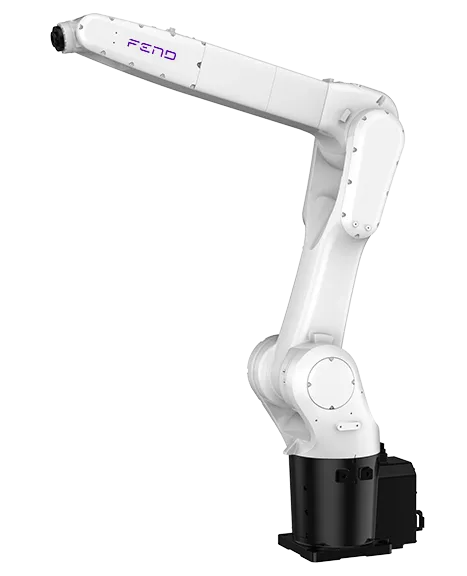

FR10/1600
Payload
10 kg
Weight
Approximately 117 kg
Reach
1602 mm
DOF
6
IP Rating
IP67
Drive Mode
AC servo
Repeatability
±0.03 mm
Operating Temperature
0℃ to +45℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤75 dB(A)
Air
1*φ8+2*φ6, 8bar
Signal
24 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-170° to +170°
245°/s
Axis 2
-105° to +145°
245°/s
Axis 3
-210° to +70°
290°/s
Axis 4
-270° to +270°
435°/s
Axis 5
-135° to +135°
450°/s
Axis 6
-360° to +360°
705°/s

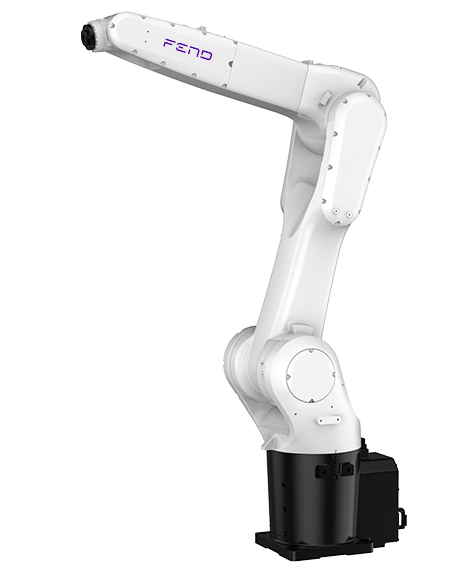

FR12/1400
Payload
12 kg
Weight
Approximately 115 kg
Reach
1442 mm
DOF
6
IP Rating
IP67
Drive Mode
AC servo
Repeatability
±0.03 mm
Operating Temperature
0℃ to +45℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤75 dB(A)
Air
1*φ8+2*φ6, 8bar
Signal
24 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-170° to +170°
245°/s
Axis 2
-105° to +145°
245°/s
Axis 3
-210° to +70°
290°/s
Axis 4
-270° to +270°
435°/s
Axis 5
-135° to +135°
450°/s
Axis 6
-360° to +360°
705°/s

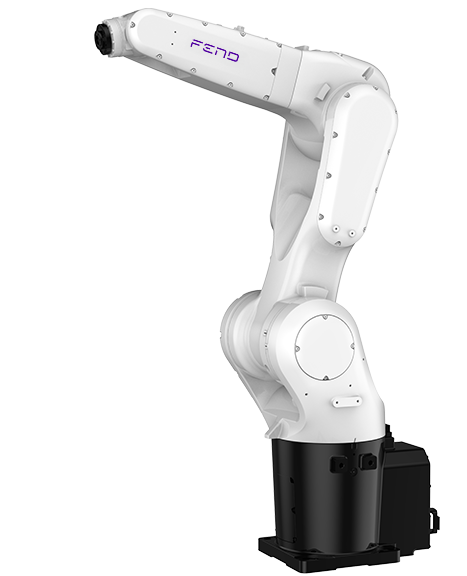

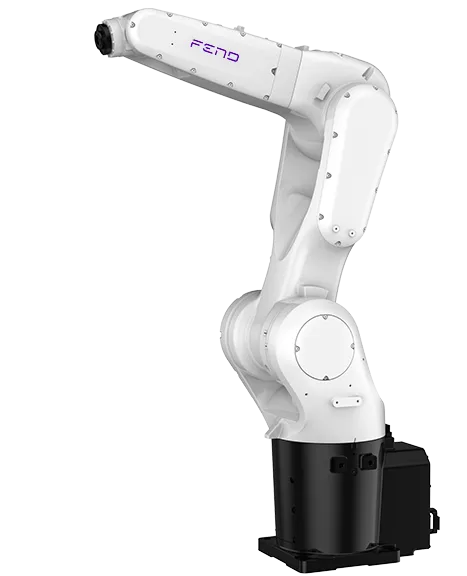

FR16/1100
Payload
16 kg
Weight
Approximately 112 kg
Reach
1102 mm
DOF
6
IP Rating
IP67
Drive Mode
AC servo
Repeatability
±0.03 mm
Operating Temperature
0℃ to +45℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤75 dB(A)
Air
1*φ8+2*φ6, 8bar
Signal
24 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-170° to +170°
245°/s
Axis 2
-105° to +145°
245°/s
Axis 3
-210° to +70°
290°/s
Axis 4
-270° to +270°
435°/s
Axis 5
-135° to +135°
450°/s
Axis 6
-360° to +360°
705°/s

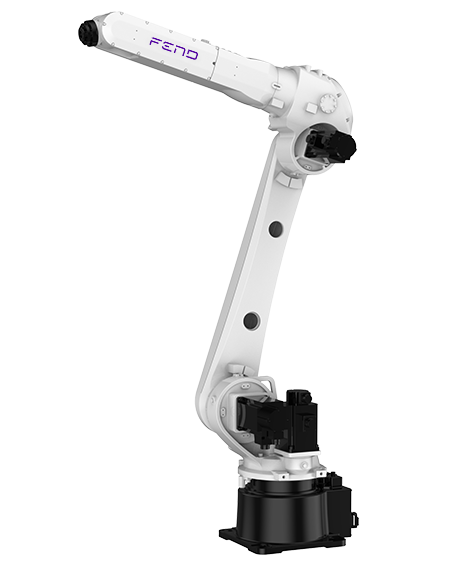

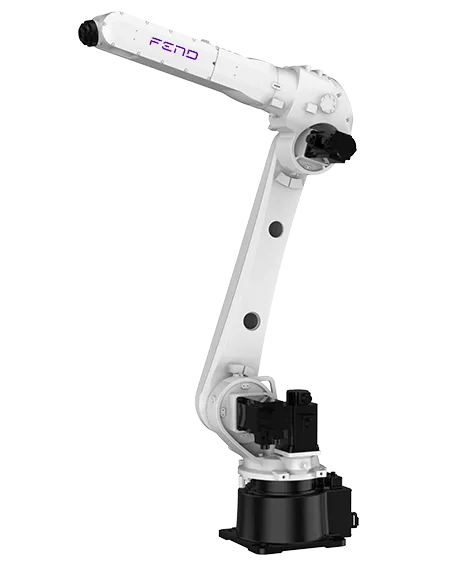

FR20/2000
Payload
20 kg
Weight
Approximately 264 kg
Reach
2013 mm
DOF
6
IP Rating
IP65(Wrist IP67)
Drive Mode
AC servo
Repeatability
±0.05 mm
Operating Temperature
0℃ to +40℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤75 dB(A)
Air
2-Φ8, 8bar
Signal
24 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-180° to +180°
204°/s
Axis 2
-99° to +156°
186°/s
Axis 3
-200° to +75°
182°/s
Axis 4
-180° to +180°
492°/s
Axis 5
-135° to +135°
450°/s
Axis 6
-360° to +360°
705°/s

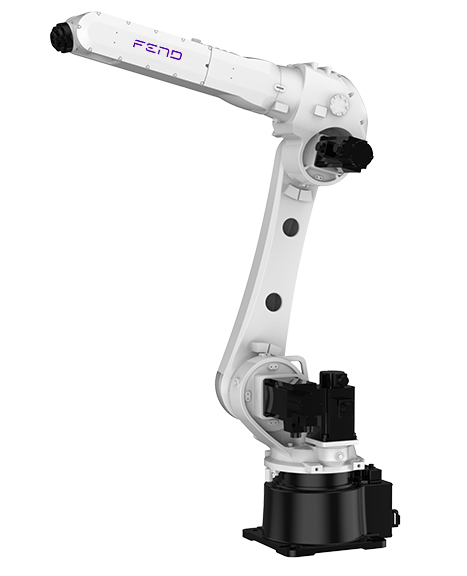

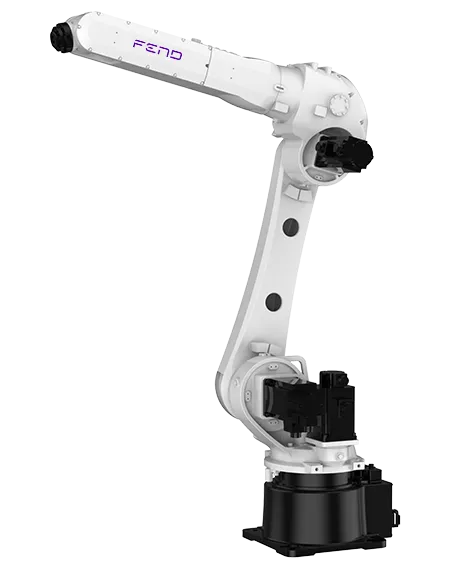

FR25/1800
Payload
25 kg
Weight
Approximately 256 kg
Reach
1813 mm
DOF
6
IP Rating
IP65(Wrist IP67)
Drive Mode
AC servo
Repeatability
±0.05 mm
Operating Temperature
0℃ to +40℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤75 dB(A)
Air
2-Φ8, 8bar
Signal
24 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-180° to +180°
204°/s
Axis 2
-99° to +156°
186°/s
Axis 3
-200° to +75°
182°/s
Axis 4
-180° to +180°
492°/s
Axis 5
-135° to +135°
450°/s
Axis 6
-360° to +360°
705°/s

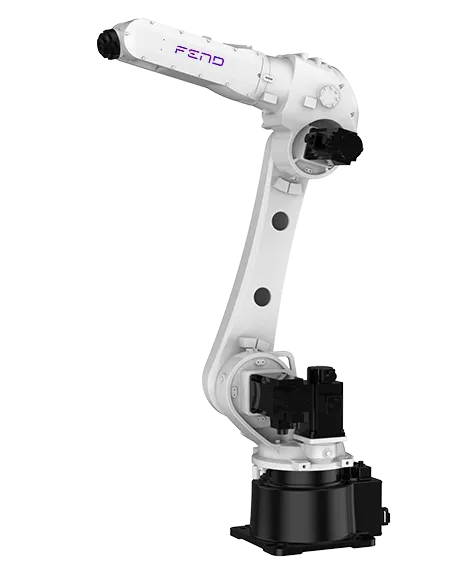

FR30/1600
Payload
30 kg
Weight
Approximately 252 kg
Reach
1617 mm
DOF
6
IP Rating
IP65(Wrist IP67)
Drive Mode
AC servo
Repeatability
±0.05 mm
Operating Temperature
0℃ to +40℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤75 dB(A)
Air
2-Φ8, 8bar
Signal
24 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-180° to +180°
204°/s
Axis 2
-99° to +156°
186°/s
Axis 3
-200° to +75°
182°/s
Axis 4
-180° to +180°
492°/s
Axis 5
-135° to +135°
450°/s
Axis 6
-360° to +360°
705°/s

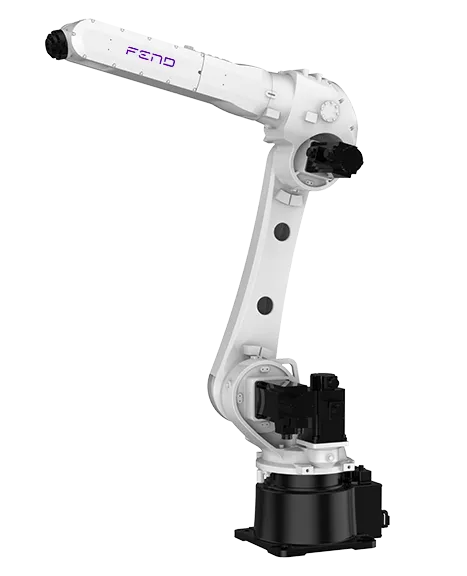

FR35/1800
Payload
35 kg
Weight
Approximately 256 kg
Reach
1813 mm
DOF
6
IP Rating
IP65(Wrist IP67)
Drive Mode
AC servo
Repeatability
±0.05 mm
Operating Temperature
0℃ to +40℃
Storage Temperature
-10℃ to +55℃
Noise Level
≤75 dB(A)
Air
2-Φ8, 8bar
Signal
24 channels (30 V, 0,5 A)
Mounting Method
Floor, Ceiling
Motion Parameters
Axes
Range of Motion
Max Speed
Axis 1
-180° to +180°
204°/s
Axis 2
-99° to +156°
186°/s
Axis 3
-200° to +75°
182°/s
Axis 4
-180° to +180°
310°/s
Axis 5
-135° to +135°
360°/s
Axis 6
-360° to +360°
444°/s
